English
- USB Port: USB Type A
- Disc Playback: USB & Memory Card
- Remote Control: Yes
- Aux Input: Yes
- Type: Digital Media Receiver
- Model Number: KDC 1030U
- Microphone Included: No
- Bluetooth: Yes
- Detachable Face: No
- FM: Frequency Range (Frequency step): 87.5MHz – 108.0MHz (50kHz)
- Usable Sensitivity S/N 30dB, Deviation: 22.5kHz 8.2dBf (0.71μV/75Ω）
- Quieting Sensitivity S/N 46dB, Deviation: 40kHz 17.2dBf (2.0μV/75Ω）
- Frequency Response (±3.0dB): 30Hz-15kHz
- S/N: 64.0dB(MONO)
- Stereo Separation: 40dB(1kHz)
- AM: Frequency Range (Frequency step): Band 1(MW) / 531kHz – 1602Hz(9kHz), Band 2(SW1) / 2940kHz – 7735kHz(5kHz)
- Band 3(SW2) / 9500kHz – 10135kHz / 11580kHz – 18135kHz (5kHz)
- Channel Space Selection: Band 1 / 9kHz, Band 2/3 / 5kHz
- Usable Sensitivity S/N: 20dB 29dBμ(28.2μv): MW
- 30dBμ (32μv): SW
- CD Laser Diode: GaAlAs
- Digital Filter(D/A): 8 Times OverSampling
- Spindle Speed: 500~200rpm (CLV)
- Wow & Flutter: Below Mesurable Limit
- Frequency Response: 20Hz-20kHz(±1dB)
- Total Harmonic Distortion: 0.01%(1kHz)
- S/N Ratio (dB): 105dB(1kHz)
- Dynamic Range: 90dB
- Channel Separation: 85dB
- MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
- WMA Decode: Compliant with WINDOWS MEDIA AUDIO
- Preout Level(mV)/Load Unbalanced: 2500mV/10kΩ(CD)
- Preout Impedance(Ω): ≦600Ω
- Speaker Impedance(Ω): 4-8Ω
- USB: USB 1.1 / 2.0 Full Speed
- File System FAT12 / 16 / 32
- Maximum Supply current DC5V(DC logo): 1A
- MP3 decode: Compliant with MPEG-1/2 Audio Layer-3
- WMA decode: Compliant with Windows Media Audio
- WAV Decode: Linear-PCM
- FLAC Decode: FLAC file (Up to 48kHz/16bit)
- Input Frequency Response: 20~20kHz ±3dB
- Input Maximum Voltage: 1000mV
- Input Impedance: 30kΩ
- AMP Maximum Power: 50wx4
- Full Bandwidth Power (at less than 1%THD): 22wx4
- Tone Bass: 100Hz ±8dB
- Middle: 1kHz ±8dB
- Treble: 12.5kHz ±8dB
- Operating voltage: 14.4V
- Maximum Current Consumption: 10A
- Operational Temperature Range: -10°C to +60°C
- Dimensions: 182 x 53 x 158 mm
- Weight: 1.2 kg
- Details: Direct audio control button allows you to access quickly to the sound tuning menu
- Vertical Alignment LCD display secures higher visibility during day-time drive
About Us
At TEZA AUTO ACCESSORIES, we are passionate about driving excellence—literally. Established with the goal of enhancing every journey, we specialize in providing high-quality, reliable, and affordable auto accessories and spare parts that keep your vehicle looking sharp and running smoothly. Based on years of experience and a deep understanding of the automotive industry, TEZA AUTO is committed to being a trusted partner for mechanics, drivers, fleet owners, and car enthusiasts. Whether you're upgrading your car’s performance, adding a personal touch, or simply replacing a worn-out part, we’ve got the right product for you.
About Us

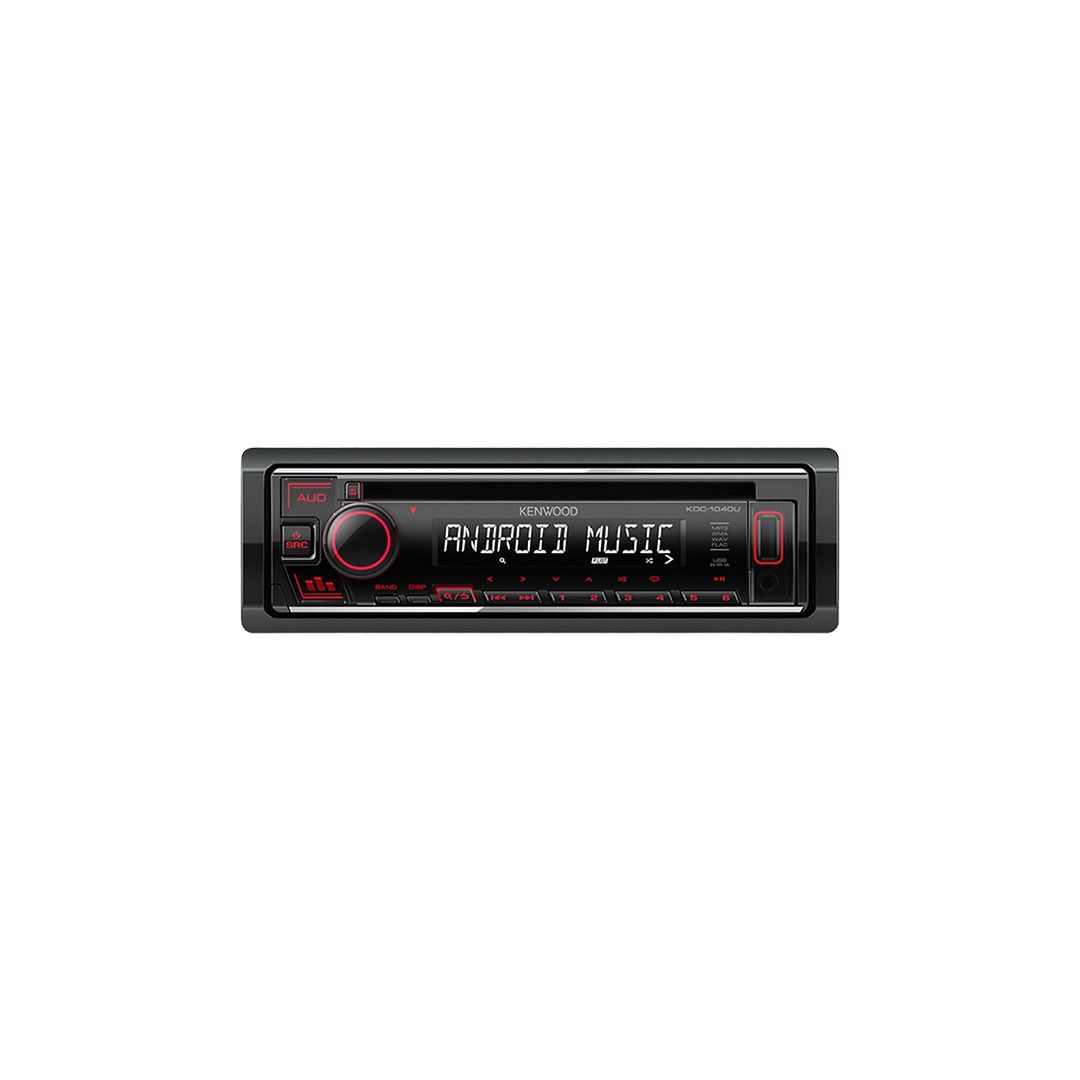

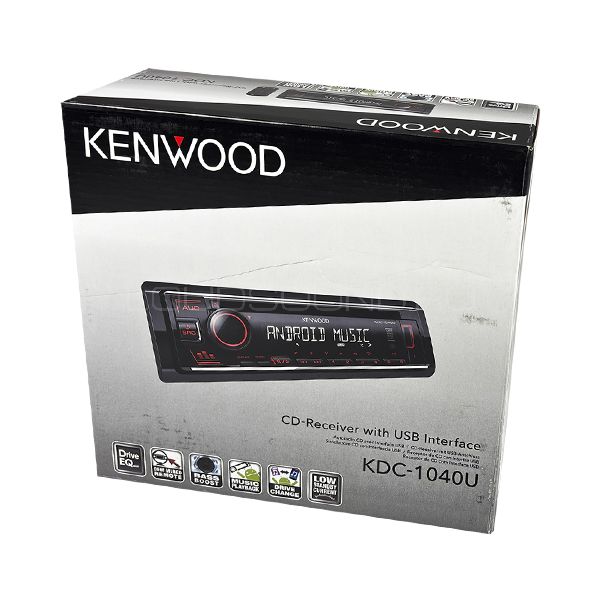

Car Radio Kenwood Single Din-KDC-1040U
UGX495,000
/Item
With the Kenwood USB CD Receiver – KDC 1040U you can play back from USB devices audio files compressed in various formats. Direct audio control button allows you to access quickly to the sound tuning menu and Vertical Alignment LCD display secures higher visibility during day-time drive.
SPECIFICATIONS:
Additional Information:
| Not Available |
